Industrial UV flatbed printer with ricoh G5/G6 printheads

HYYUV2513(1213,2013,2513,2518,2030,2040,2530,3020,2540,3030,3040,3050,3060)

1.7PL variable ink droplet,high precision printing
2.All steel structure head, long life, corrosion resistant
3.Imported silent linear guide, stable operation
4.Imported screw drive, high precision
5.Intelligent ink quality alarm system
6.Automatic height measurement positioning system
7.Color white double negative pressure independent control
8.One machine for dual use, printing both tablet materials and cylindrical materials.

SEND INQUIRY NOW

Product Details

Configuration introduction

	PMI double rail Choose Taiwan PMI double guide rail, with steel ball rolling between the slider and the guide rail The friction coefficient is as low as 1/50 of the ordinary friction guide rail *High precision, less wear, can maintain high operating accuracy for a long time, suitable for high-speed movement
	PMI Double screw The Y-axis is driven by Taiwan PMI ball screw With low rotational friction, high motion efficiency, and more energy-saving. The required starting torque is small, no crawling phenomenon occurs, and accurate micro-feed motion can be ensured
	Aviation aluminum alloy beam Using 8CM16CM precision milling aviation aluminum profile *the error is controlled within 0.05mm to ensure accurate X-axis movement
	Gantry milling welding frame The frame is integrally welded with 8cm16cm square steel to ensure that the steel structure is firm and stable without deformation. The platform base structure is milled by a high-precision gantry milling machine with higher precision.
	LED-UV curing lamp Using imported brand LED lamp beads cold curing lamp the light source is environmentally friendly and pollution-free the temperature of the light source is low and it can adapt to more temperature-sensitive materials
	Panasonic Servo Motor System Excellent dynamic response capability multiple position smoothing functions significantly improve the smoothness of equipment operation reduce the impact of the mechanical system, and extend the service life of the equipment.
	Automatic height measurement system The software automatically adjusts the appropriate distance between the print head and the object to be printed which is accurate, efficient, convenient and fast, effectively avoids droplets *and provides a guarantee for high-quality image output

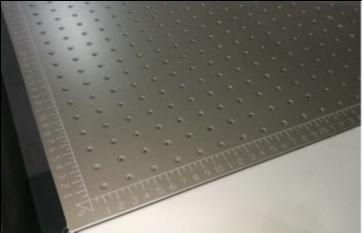

	Hard Alu Alloy oxidation adsorption platform The hard Alu Alloy oxidized honeycomb hole sub-cavity adsorption platform has strong adsorption capacity and low motor loss. It can effectively prevent friction between the nozzle and the object to be printed. The adsorption area can be adjusted at will. The surface of the platform has high hardness, scratch resistance and corrosion resistance.
	Static elimination device In the working process of the UV printer the static eliminator is close to the surface of the object the air is ionized into a large amount of positive and negative ion static electricity through the tip high-voltage corona discharge which neutralizes the static electricity on the surface of the material to avoid the phenomenon of ink flying caused by static electricity.

TECHNICAL PARAMETERS

Model	HYY-UV2013	HYY-UV2513	HYY-UV2518	HYY-UV2030	HYY-UV2530	HYY-UV2540	HYY-UV3030	HYY-UV3050
Machine Dimensions	L:2150mm	L:2150mm	L:2750mm	L:3900mm	L:4900mm	L:4490mm	L:3900mm	L:5900mm
	W:3930mm	W:4430mm	W:4430mm	W:4430mm	W:4430mm	W:4430mm	W:4930mm	W:4930mm
	H:1400mm	H:1400mm	H:1400mm	H:1400mm	H:1400mm	H:1400mm	H:1400mm	H:1400mm
machine Weight	1200kg	1400kg	1500kg	1700kg	1900kg	2000kg	2100kg	2300kg
Printing size:	2000mm*1250mm	2500mm*1250mm	2500mm*1800mm	2050mm*3000mm	2500mm*3000mm	2500mm*4000mm	3000mm*3000mm	3000mm*5000mm
Printhead	Style	Ricoh Gen5
	Ink Droplet Size	7-35PL
	Grey grade	8 Grade
	Printhead QTY	2-24pcs
Printhead	Configuration	2-8 printerheads	9-24 printerheads
	Draft Mode	20-80m2/h	80-180m2/h
	Production Mode	14-56m2/h	56-120m2/h
	High Quality Mode	10-40m2/h	40-90m2/h
Printing Resolution	720*2400 dpi (6pass)
Media's Max Thickness	0-100m Customized thickness is acceptable
Flatbed capacity	100kg/m2
Color Configuration	C,M,Y,K,Lc,Lm,W,V
Clean way	Postitive Pressure Cleaning
Curing Method	LED UV water-cooling Lamp
Lens hood	Metal integrated lens hood,protect eyes
Data Interface	USB3.0/Network Interface
Power Supply	Single Phase AC220V,50/60Hz.14A,3KW(Print power 1500w,Adsorption platform 1500w)
RIP Software	PhotoPrint,UltraPrint,PhotoMangent
Image Format	TIFF,JPEG,CMX,AI,PSD,PS,PDF,EPS
Color Control	International ICC standard with adjusting function for profiles and density
Print mode	Single/Double
Print material	Glass, acrylic, metal, wood, plastic, paper, ceramic tile, leather,
	PVC/PP/ABS/PET/KT board,aluminum composite panel
Operation System	Win7(x64),Win10(x64)
Working environment	Temperature:15-30C, Humidity:40%-70%
