PRODUCTS
VR

Configuration introduction

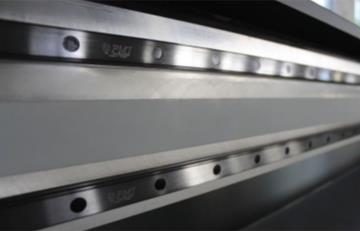

PMI double rail
*Choose Taiwan PMI double guide rail, with steel ball rolling between the slider and the guide rail

*The friction coefficient is as low as 1/50 of the ordinary friction guide rail

*High precision, less wear, can maintain high operating accuracy for a long time, suitable for high-speed movement

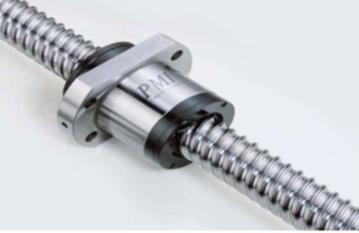

PMI Double screw
*The  Y-axis is driven by Taiwan PMI ball screw
*With  low rotational friction, high motion efficiency, and more energy-saving. The  required starting torque is small, no crawling phenomenon occurs, and accurate micro-feed  motion can be ensured

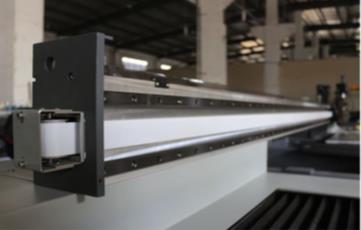

Aviation aluminum alloy beam
*Using  8CM*16CM precision milling aviation aluminum profile
*the  error is controlled within 0.05mm to ensure accurate X-axis movement

Gantry milling welding frame
*The  frame is integrally welded with 8cm*16cm square steel
*to ensure that the steel structure is firm and stable without deformation.
*The  platform base structure is milled by a high-precision gantry milling machine  with higher precision.

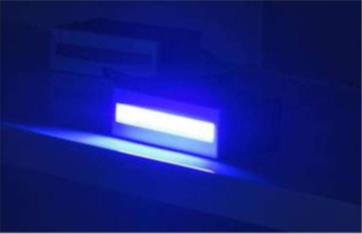

LED-UV curing lamp
*Using  imported brand LED lamp beads cold curing lamp
*the  light source is environmentally friendly and pollution-free
*the  temperature of the light source is low
*and it can adapt to more temperature-sensitive materials

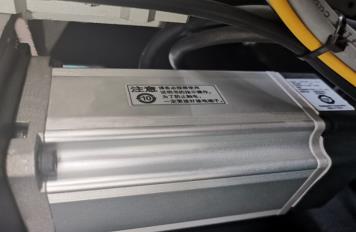

Panasonic Servo Motor System
*Excellent  dynamic response capability
*multiple  position smoothing functions
*significantly  improve the smoothness of equipment operation
*reduce  the impact of the mechanical system, and extend the service life of the  equipment.

Automatic height measurement system
*The  software automatically adjusts the appropriate distance between the print head  and the object to be printed
*which  is accurate, efficient, convenient and fast, effectively avoids droplets
*and  provides a guarantee for high-quality image output

Static elimination device
*In the working process of the UV printer
*the  static eliminator is close to the surface of the object
*the  air is ionized into a large amount of positive and negative ion static  electricity through the tip high-voltage corona discharge
*which  neutralizes the static electricity on the surface of the material to avoid the  phenomenon of ink flying caused by static electricity.


TECHNICAL PARAMETERS


ModelHYY-RF2000HYY-RF2500

Machine DimensionsL:4200mmL:4735mm

W:1200mmW:1820mm

H:1700mmH:1640mm

Machine Weight1500kg2600kg

Printing    Width:2000mm2500mm

PrintheadStyleRicoh Gen5
Ink Droplet Size7-35PL
Grey grade8 Grade
PrintheadConfiguration2-8 printerheads

Draft Mode(4pcs)40m2/h

Production Mode(4pcs)30m2/h

High Quality Mode(4pcs)20m2/h

Printing Resolution720*2400 dpi (6pass)


Media's Max Thickness0-100m Customized thickness is acceptable
Color Configuration C,M,Y,K,Lc,Lm,W,V


Clean wayPostitive Pressure    Cleaning

Curing MethodLED UV water-cooling Lamp

Lens hoodMetal integrated lens hood,protect eyes

Data InterfaceUSB3.0/Network Interface
Power SupplySingle Phase    AC220V,50/60Hz.14A,3.5KW,7.5KW
RIP SoftwarePhotoPrint


Image FormatTIFF,JPEG,CMX,AI,PSD,PS,PDF,EPS

Color ControlInternational    ICC standard with adjusting function for profiles and density
Print materialPrintable flexible materials: knife cloth, light cloth, canvas, soft film, etc.

Printable hard materials: acrylic, chevron board, corrugated cardboard, glass, ceramic tile, etc.
Operation SystemWin7(x64),Win10(x64)


Working environmentTemperature:15-30C,  Humidity:40%-70%
