APPLICATION OF UV PRINTERS
GLASS ART AESTHETIC DECORATIVE PAINTING
GIFT PACKING BOX METAL WORK PLATE
TECHNICAL TEXTILES METAL MEDAL
5D BACKGROUND WALL STAINLESS STEEL BRAND
PLEXIGLASS BRAND CYLINDRICAL BOTTLE
CERAMIC BACKGROUND WALL BAMBOO FIBER BOARD
ARCYLIC BRAND ABS
ART GLASS BANNER
SAMLL POX SOFT FILM LIGHT BOX SOFT FILM
STICKER WALL COVERING
PVC BOARD MARBLE EFFECT PRINTING
Suzhou Hyunvan Intellitech Co.,Ltd. will regulate its market management in the coming days.
Machine Specification:
TECHNICAL PARAMETERS
Model HYY-UV2030
Printhead Style Ricoh Gen5
Ink Droplet Size 7-35PL
Grey grade 8 Grade
Printhead QTY 2-24pcs
Printhead Configuration 2-8 printerheads 9-24 printerheads
Draft Mode 20-80m2/h 80-180m2/h
Production Mode 14-56m2/h 56-120m2/h
High Quality Mode 10-40m2/h 40-90m2/h
Printing Resolution 720*2400 dpi (6pass)
Media's Max Thickness 0-100m Customized thickness is acceptable
Flatbed capacity 100kg/m2
Printing Size: 2000mm*3000mm
Color Configuration C,M,Y,K,Lc,Lm,W,V
Clean way Postitive Pressure Cleaning
Curing Method LED UV water-cooling Lamp
Lens hood Metal integrated lens hood,protect eyes
Data Interface USB3.0/Network Interface
RIP Software PhotoPrint,UltraPrint,PhotoMangent
Image Format TIFF,JPEG,CMX,AI,PSD,PS,PDF,EPS
Color Control International ICC standard with adjusting function for profiles and density
Print mode Single/Double

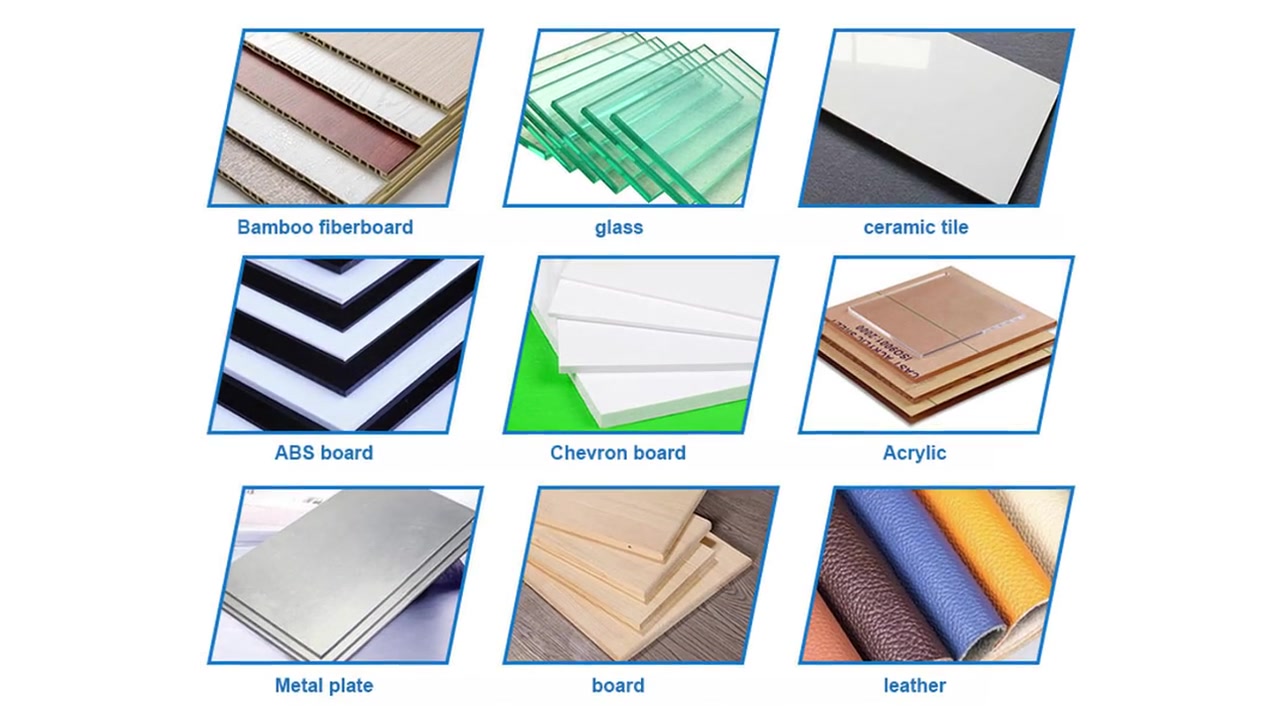

Print material Glass, acrylic, metal, wood, plastic, paper, ceramic tile, leather,
PVC/PP/ABS/PET/KT board,aluminum composite panel
Operation System Win7(x64),Win10(x64)
Working environment Temperature:15-30C, Humidity:40%-70%
Power Supply Single Phase AC220V,50/60Hz.14A,3KW(Print power 1500w,Adsorption platform 1500w)
Machine Dimension L3900 *W3930 *H1400mm,Wooden packing size: L4160 *W2280 *H1980mm
Machine Weight NW=2000kg
FAQ
1.Do you have showroom, can you supply samples printing or proofing with free of charges?
Yes we have showroom with different types of machines. Sincerely welcome you to visit. You can send the printing media or files to us directly , we will send you the printing samples .
2.How to deal with the surface of glass and ceramic tile? How to spray?
Glass and ceramic tile are both the commonly used materials. We have special coating for this materials and with perfect effect. There are air pump spray, hand brushing, rolling spraying and various methods.
3.What about the After-sales service ?
1. Provide customers with a systematic site layout proposal to ensure a smooth installation. 2. Provide free on-site training at the factory and second review training at the installation site; 3. The standard warranty period on average is one year. However, HYUNVAN would like to offer extra warranty period (consitions apply), lifetime maintenance. 4. We HYUNVAN can send engineers to help customers install the machines, train workers, but buyer should offer ticket charge, boarding and lodging .
Advantages
1.Professional technical research team, application program research and complete program output, can develop a complete set of technology according to user needs, ceramic tile background wall, plastic PVC, glass, leather, metal, grating, 3D can realize three-dimensional printing at one time.
2.Color Accuracy- The international high-end color management system is adopted to ensure the color accuracy of each picture, and the independent ICC can be customized for you individually.
3.With 10 years of accumulated technology and experience, the machine is more practical and durable. Leading quality. Successfully sold to Europe, America, Middle East, Southeast Asia and other countries, and welcomed by customers from domestic and worldwide.
4.After-sales service is perfect and fast, The standard warranty period on average is one year. However, HYUNVAN would like to offer extra warranty period (conditions apply)
About HYUNVAN
Suzhou Hyunvan Intellitech Co.,Ltd. Established in 2011, is a professional manufacturer specializing in the research, development, production and sales of UV printing equipment.
The company has a number of patents. At present, the company’s main products are :
UV flatbed printer,
UV roll to roll printer,
UV hybrid printer.
Products are widely used in the background wall decorative painting industry, advertising sign industry, furniture digital printing industry, glass crystal technology industry, packaging processing industry and so on.
Suzhou Hyunvan Intellitech Co.,Ltd. focus on customers’ needs, with good stability ,high precision and fast speed. Products are ranging from economical and practical to high-end industrial, from standard format to large format customization, we provide comprehensive, product types for customers in different industries. The company has adhered to the road of independent innovation for many years. The company has a complete R&D and production equipment system, attaches great importance to product quality and new product development, and cultivates a well-trained R&D, production and after-sales team to continuously enhance the innovation strength of the company. Continuously improve product quality and Continuously improve service quality.
Based on the tenet of “ Honesty is the foundation and win by quality”, the company focuses on the market demand, looking forward to the future ,takes the pragmatic innovation and serves the customers’ business
Basic Information
-
Year Established
2010
-
Business Type
Manufacturing Industry
-
Country / Region
CHINA
-
Main Industry
Printing Services
-
Main Products
inkjet UV PRINTERS
-
Enterprise Legal Person
HONGYUN XU
-
Total Employees
16~100 people
-
Annual Output Value
2000 sets
-
Export Market
Chinese Mainland,European Union,Middle East,Eastern Europe,Latin America,Africa,Oceania,Hong Kong and Macao and Taiwan,Southeast Asia,America
-
Cooperated Customers
--
Company Profile
Suzhou Hyunvan Intellitech Co.,Ltd. Established in 2011, is a professional manufacturer specializing in the research, development, production and sales of UV printing equipment.
The company has a number of patents. At present, the company’s main products are : UV flatbed printer, UV roll to roll printer, UV hybrid printer.
Products are widely used in the background wall decorative painting industry, advertising sign industry, furniture digital printing industry, glass crystal technology industry, packaging processing industry and so on.
Suzhou Hyunvan Intellitech Co.,Ltd. focus on customers’ needs, with good stability ,high precision and fast speed. Products are ranging from economical and practical to high-end industrial, from standard format to large format customization, we provide comprehensive, product types for customers in different industries. The company has adhered to the road of independent innovation for many years. The company has a complete R&D and production equipment system, attaches great importance to product quality and new product development, and cultivates a well-trained R&D, production and after-sales team to continuously enhance the innovation strength of the company. Continuously improve product quality and Continuously improve service quality.
Based on the tenet of “ Honesty is the foundation and win by quality”, the company focuses on the market demand, looking forward to the future ,takes the pragmatic innovation and serves the customers’ business
