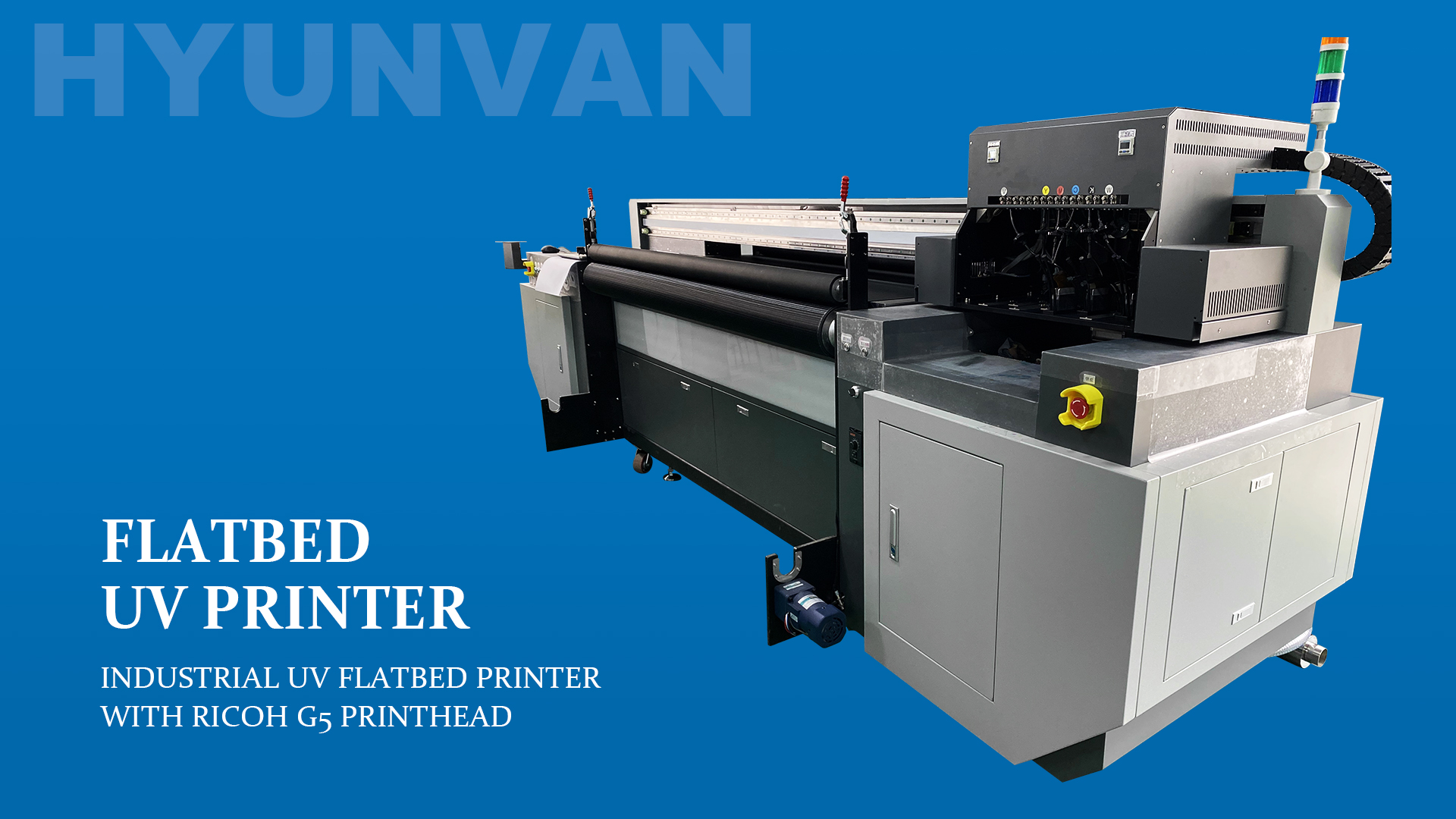

Best Quality HYUNVAN UV Printer UV Printing on leather Factory
HYUNVAN involves a wide range of in-depth tests including analyzing both the chemical and physical properties of the electrode materials used.
TECHNICAL PARAMETERS
Model HYY-UV2013 HYY-UV2513 HYY-UV2518 HYY-UV2030 HYY-UV2530 HYY-UV2540 HYY-UV3030 HYY-UV3050
Machine Dimensions L:2150mm L:2150mm L:2750mm L:3900mm L:4900mm L:4490mm L:3900mm L:5900mm
W:3930mm W:4430mm W:4430mm W:4430mm W:4430mm W:4430mm W:4930mm W:4930mm
H:1400mm H:1400mm H:1400mm H:1400mm H:1400mm H:1400mm H:1400mm H:1400mm
machine Weight 1200kg 1400kg 1500kg 1700kg 1900kg 2000kg 2100kg 2300kg
Printing size: 2000mm*1250mm 2500mm*1250mm 2500mm*1800mm 2050mm*3000mm 2500mm*3000mm 2500mm*4000mm 3000mm*3000mm 3000mm*5000mm
Printhead Style Ricoh Gen5
Ink Droplet Size 7-35PL
Grey grade 8 Grade
Printhead QTY 2-24pcs
Printhead Configuration 2-8 printerheads 9-24 printerheads
Draft Mode 20-80m2/h 80-180m2/h
Production Mode 14-56m2/h 56-120m2/h
High Quality Mode 10-40m2/h 40-90m2/h
Printing Resolution 720*2400 dpi (6pass)
Media's Max Thickness 0-100m Customized thickness is acceptable
Flatbed capacity 100kg/m2
Color Configuration C,M,Y,K,Lc,Lm,W,V
Clean way Postitive Pressure Cleaning
Curing Method LED UV water-cooling Lamp
Lens hood Metal integrated lens hood,protect eyes
Data Interface USB3.0/Network Interface
Power Supply Single Phase AC220V,50/60Hz.14A,3KW(Print power 1500w,Adsorption platform 1500w)
RIP Software PhotoPrint,UltraPrint,PhotoMangent
Image Format TIFF,JPEG,CMX,AI,PSD,PS,PDF,EPS
Color Control International ICC standard with adjusting function for profiles and density
Print mode Single/Double
Print material Glass, acrylic, metal, wood, plastic, paper, ceramic tile, leather,
PVC/PP/ABS/PET/KT board,aluminum composite panel
Operation System Win7(x64),Win10(x64)
Working environment Temperature:15-30C, Humidity:40%-70%
FAQ
1.How long does the print-head working life?
A print-head can be used 2 years in regular working conditions.
2.How could you do the effect of tri-dimensional embossed?
The solid effect can be achieved by two methods: (1) changes the printing material: achieve the embossed effect through engraving machine or material itself texture, then use our
UV flatbed printer to print in contraposition; (2)we are with 3D stereo embossed printing technology. use white inks to print several times and make them pile up, to get the relief effect. The difference of this two methods are: the former method allows bigger height difference of three-dimensional effect, but with higher cost; the later with height difference limits, but can be piled up repeatedly when prints, and convenient operation technologies and coast can be controlled, but also with very good performance.
3.What about the After-sales service ?
1. Provide customers with a systematic site layout proposal to ensure a smooth installation. 2. Provide free on-site training at the factory and second review training at the installation site; 3. The standard warranty period on average is one year. However, HYUNVAN would like to offer extra warranty period (consitions apply), lifetime maintenance. 4. We HYUNVAN can send engineers to help customers install the machines, train workers, but buyer should offer ticket charge, boarding and lodging .
Advantages
1.Color Accuracy- The international high-end color management system is adopted to ensure the color accuracy of each picture, and the independent ICC can be customized for you individually.
2.Focus on high-precision equipment, using industrial Ricoh G5 G6 nozzles, Epson, Toshiba, Konica nozzles
3.One-stop purchase of more than ten kinds of printing formats, 6000M2 production workshop, more than ten kinds of printing formats, and 3 kinds of ultra-high-precision printing nozzles. One-stop purchase is more assured.
4.Focus on the field of UV printers and carry forward the spirit of craftsmanship
About HYUNVAN
Suzhou Hyunvan Intellitech Co.,Ltd. Established in 2011, is a professional manufacturer specializing in the research, development, production and sales of UV printing equipment.
The company has a number of patents. At present, the company’s main products are : UV flatbed printer,
UV roll to roll printer,
UV hybrid printer.
Products are widely used in the background wall decorative painting industry, advertising sign industry, furniture digital printing industry, glass crystal technology industry, packaging processing industry and so on.
Suzhou Hyunvan Intellitech Co.,Ltd. focus on customers’ needs, with good stability ,high precision and fast speed. Products are ranging from economical and practical to high-end industrial, from standard format to large format customization, we provide comprehensive, product types for customers in different industries. The company has adhered to the road of independent innovation for many years. The company has a complete R&D and production equipment system, attaches great importance to product quality and new product development, and cultivates a well-trained R&D, production and after-sales team to continuously enhance the innovation strength of the company. Continuously improve product quality and Continuously improve service quality.
Based on the tenet of “ Honesty is the foundation and win by quality”, the company focuses on the market demand, looking forward to the future ,takes the pragmatic innovation and serves the customers’ business
The quality process of HYUNVAN begins with a full contract review of each order. Each component is reviewed for mechanical performance prior to production.
