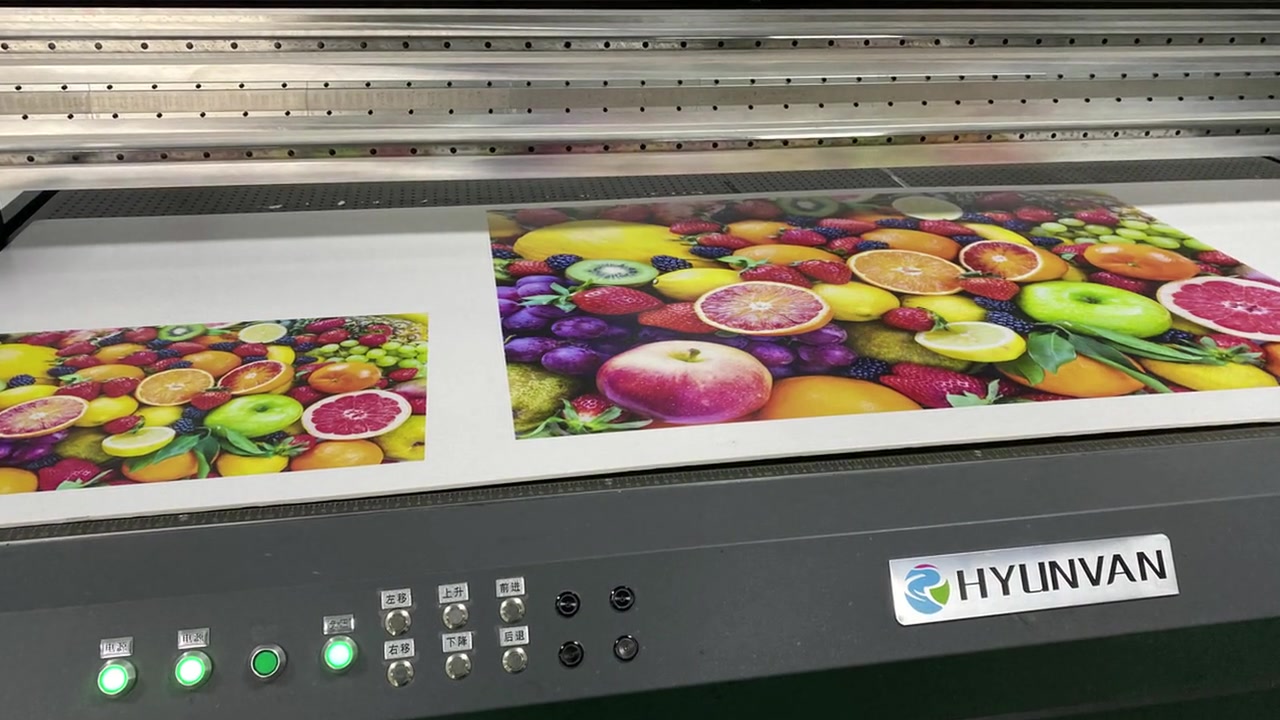

Professional UV PRINTER manufacturer UV Printing On PVC Board
Suzhou Hyunvan Intellitech Co.,Ltd. has been devoting itself into manufacturing  which is of .


TECHNICAL PARAMETERS


Model    HYY-UV3020

Printhead    Style    Ricoh Gen5

Ink Droplet Size    7-35PL

Grey grade    8 Grade

Printhead QTY    2-24pcs

Printhead    Configuration    2-8 printerheads    9-24 printerheads

Draft Mode    20-80m2/h    80-180m2/h

Production Mode    14-56m2/h    56-120m2/h

High Quality Mode    10-40m2/h    40-90m2/h

Printing Resolution    720*2400 dpi (6pass)

Media's Max Thickness    0-100m Customized thickness is acceptable

Flatbed capacity    100kg/m2

Printing Size:    2500mm*1250mm

Color Configuration     C,M,Y,K,Lc,Lm,W,V

Clean way    Postitive Pressure Cleaning

Curing Method    LED UV water-cooling Lamp

Lens hood    Metal integrated lens hood,protect eyes

Data Interface    USB3.0/Network Interface

RIP Software    PhotoPrint,UltraPrint,PhotoMangent

Image Format    TIFF,JPEG,CMX,AI,PSD,PS,PDF,EPS

Color Control    International ICC standard with adjusting function for profiles and density

Print mode    Single/Double

Print material    Glass, acrylic, metal, wood, plastic, paper, ceramic tile, leather,

PVC/PP/ABS/PET/KT board,aluminum composite panel

Operation System    Win7(x64),Win10(x64)

Working environment    Temperature:15-30C, Humidity:40%-70%

Power Supply    Single Phase AC220V,50/60Hz.14A,3KW(Print power 1500w,Adsorption platform 1500w)

Machine Dimension    L3900 *W3930 *H1400mm,Wooden packing size: L4160 *W2280 *H1980mm

Machine Weight    NW=2000kg, GW=2400kg


Advantages

1.Focus on the field of UV printers and carry forward the spirit of craftsmanship
2.Color Accuracy- The international high-end color management system is adopted to ensure the color accuracy of each picture, and the independent ICC can be customized for you individually.
3.Professional technical research team, application program research and complete program output,  can develop a complete set of technology according to user needs, ceramic tile background wall, plastic PVC, glass, leather, metal, grating, 3D can realize three-dimensional printing at one time.

4.One-stop purchase of more than ten kinds of printing formats,  6000M2 production workshop, more than ten kinds of printing formats, and 3 kinds of ultra-high-precision printing nozzles. One-stop purchase is more assured.


FAQ

1.What about the After-sales service ?

1. Provide customers with a systematic site layout proposal to ensure a smooth installation. 2. Provide free on-site training at the factory and second review training at the installation site; 3. The standard warranty period on average is one year. However, HYUNVAN would like to offer extra warranty period (consitions apply), lifetime maintenance.  4. We HYUNVAN can send engineers to help customers install the machines, train workers, but buyer should offer ticket charge, boarding and lodging .

2.How long does the print-head working life?

A print-head can be used 2 years in regular working conditions.

3.Do you have showroom, can you supply samples printing or proofing with free of charges?

Yes we have showroom with different types of machines. Sincerely welcome you to visit. You can send the printing media or files to us directly , we will send you the printing samples .


About HYUNVAN

Suzhou Hyunvan Intellitech Co.,Ltd. Established in 2011, is a professional manufacturer specializing in the research, development, production and sales of UV printing equipment. The company has a number of patents. At present, the company’s main products are : UV flatbed printer, UV roll to roll printer, UV hybrid printer. Products are widely used in the background wall decorative painting industry, advertising sign industry, furniture digital printing industry, glass crystal technology industry, packaging processing industry and so on. Suzhou Hyunvan Intellitech Co.,Ltd. focus on customers’ needs, with good stability ,high precision and fast speed. Products are ranging from economical and practical to high-end industrial, from standard format to large format customization, we provide comprehensive, product types for customers in different industries. The company has adhered to the road of independent innovation for many years. The company has a complete R&D and production equipment system, attaches great importance to product quality and new product development, and cultivates a well-trained R&D, production and after-sales team to continuously enhance the innovation strength of the company. Continuously improve product quality and Continuously improve service quality. Based on the tenet of “ Honesty is the foundation and win by quality”, the company focuses on the market demand, looking forward to the future ,takes the pragmatic innovation and serves the customers’ business
