Factor determine quality of UV printer-guide rail | HYUNVAN

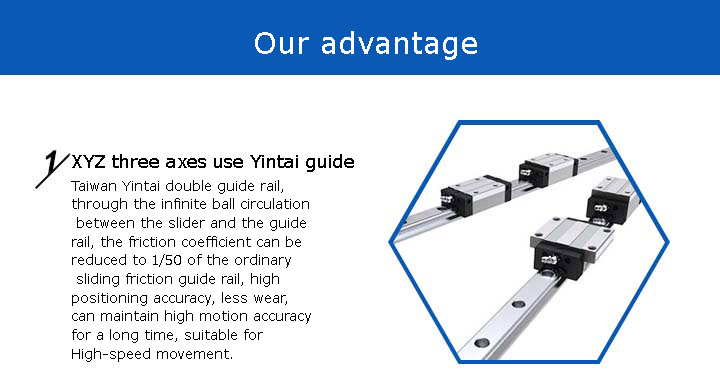

HYUNVAN UV PRINTER MANUFACTURER,Specialized in making  UV printers,our machine have 3 rails for option,




The following is a brief introduction to the processing technology of the guide rail:

The machining process of the guide rail is: ①rough machining→②semi-finishing→③finish machining, with two heat treatments interspersed in the middle, and two methods of grinding and scraping are used in the finishing stage. Most of the machining volume of the parts is removed by rough machining. This machining process generates heat and machining stress. Therefore, during the machining process, attention should be paid to the selection of the three elements of cutting to minimize the deformation of the parts; in order to further eliminate the effects of deformation and ensure the design of the parts Tolerance requirements of size and shape and position, through finishing processing to reduce deformation, in order to meet the design requirements.

Annealing treatment: The purpose of annealing the guide rail first is to eliminate casting stress. Heat to 500-550℃ at a rate of 50-100℃/h, keep it for 3~5 hours, then cool to 200℃ at a rate of 20-50℃/h, and then air-cool.

 Artificial aging: due to the processing stress generated during the rough machining process, it will cause the stress to be released for a period of time after the processing is completed, and the parts will be deformed. The dimensional accuracy and form and position accuracy just after the processing is completed are not the final accuracy. Therefore, after the rough machining and semi-finish machining of this process are completed, in order to eliminate the processing stress, the parts should be artificially aging. Heat to 500~550℃ at a rate of less than 100℃/h, keep it for 4~6 hours, then cool it to 200℃ at a rate of 20~30℃/h, and then air cool.

Through the above processing technology, a high-precision THK guide rail is processed.


1.Do you have showroom, can you supply samples printing or proofing with free of charges?
Yes we have showroom with different types of machines. Sincerely welcome you to visit. You can send the printing media or files to us directly , we will send you the printing samples .
2.What’s the cost for printing one square meter?
The requirement of inks volume is different because of different printing accuracy and quality.  The commonly algorithm of this industry is: one square meter consumption is 10~12ml if completely spraying, it will be in lower ink consumption if in light color or incomplete inkjet printing.
3.How could you do the effect of tri-dimensional embossed?
The solid effect can be achieved by two methods:  (1) changes the printing material: achieve the embossed effect through engraving machine or material itself texture, then use our UV flatbed printer to print in contraposition;  (2)we are with 3D stereo embossed printing technology. use white inks to print several times and make them pile up, to get the relief effect.  The difference of this two methods are:  the former method allows bigger height difference of three-dimensional effect, but with higher cost;  the later with height difference limits, but can be piled up repeatedly when prints, and convenient operation technologies and coast can be controlled, but also with very good performance.


1.After-sales service is perfect and fast,  The standard warranty period on average is one year. However, HYUNVAN would like to offer extra warranty period (conditions apply)
2.With 10 years of accumulated technology and experience, the machine is more practical and durable. Leading quality.  Successfully sold to Europe, America, Middle East, Southeast Asia and other countries, and welcomed by customers from domestic and worldwide.
3.Focus on high-precision equipment,  using industrial Ricoh G5 G6 nozzles, Epson, Toshiba, Konica nozzles
4.One-stop purchase of more than ten kinds of printing formats,  6000M2 production workshop, more than ten kinds of printing formats, and 3 kinds of ultra-high-precision printing nozzles. One-stop purchase is more assured.


Suzhou Hyunvan Intellitech Co.,Ltd. Established in 2011, is a professional manufacturer specializing in the research, development, production and sales of UV printing equipment. The company has a number of patents. At present, the company’s main products are : UV flatbed printer, UV roll to roll printer, UV hybrid printer. Products are widely used in the background wall decorative painting industry, advertising sign industry, furniture digital printing industry, glass crystal technology industry, packaging processing industry and so on. Suzhou Hyunvan Intellitech Co.,Ltd. focus on customers’ needs, with good stability ,high precision and fast speed. Products are ranging from economical and practical to high-end industrial, from standard format to large format customization, we provide comprehensive, product types for customers in different industries. The company has adhered to the road of independent innovation for many years. The company has a complete R&D and production equipment system, attaches great importance to product quality and new product development, and cultivates a well-trained R&D, production and after-sales team to continuously enhance the innovation strength of the company. Continuously improve product quality and Continuously improve service quality. Based on the tenet of “ Honesty is the foundation and win by quality”, the company focuses on the market demand, looking forward to the future ,takes the pragmatic innovation and serves the customers’ business
